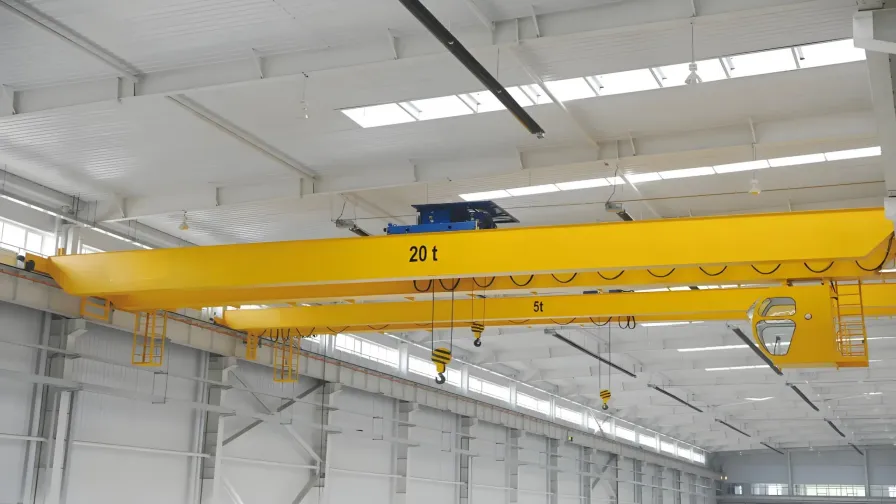

The 20-ton Overhead Crane is a core piece of equipment used in the industrial sector for heavy material handling. Its reinforced steel structure, precise transmission system, and stable performance enable it to easily handle heavy loads and high-frequency operations up to 20 tons. This equipment utilizes the longitudinal movement of the bridge on tracks, combined with the lateral movement of the trolley and the vertical lifting mechanism to achieve flexible transport of heavy loads. It is widely used in heavy-duty machinery plants, steel and metallurgical workshops, ports and terminals, and the power industry, among other heavy-duty applications.

As a mainstream heavy-duty lifting solution, the 20 ton overhead crane serves heavy industrial sectors including machinery fabrication, metallurgy, construction material production and large-scale warehouses. It performs excellently in lifting, moving and loading heavy components and bulk materials, and is an essential facility for daily production and cargo turnover in heavy industry workshops.

20 Ton Overhead Crane Design

20-ton Overhead Bridge Crane requires the following core technical parameters to ensure it is suitable for actual operation requirements:

Lifting capacity: 5~20 tons (20 tons is the common specification, and the lifting capacity range of different structural types varies slightly)

Span: Track center distance, usually 10~35 meters, can be customized according to the width of the plant, double beam span has wider adaptability

Lifting height: The maximum lifting height of the hook is in the standard range of 6~30 meters, and can be customized according to the workshop height and material stacking requirements.

Working level: Commonly ISO A5~A6 or FEM 2M~3M, A5 is suitable for medium-frequency heavy load, A6 is suitable for high-frequency continuous heavy load operation

Power supply configuration: Standard is 380V/50Hz three-phase AC, which can be customized according to the regional power grid, such as 690V, 415V and 60Hz frequency; electromagnetic cranes require an additional power supply for electromagnetic chucks.

Customized 20 ton overhead crane

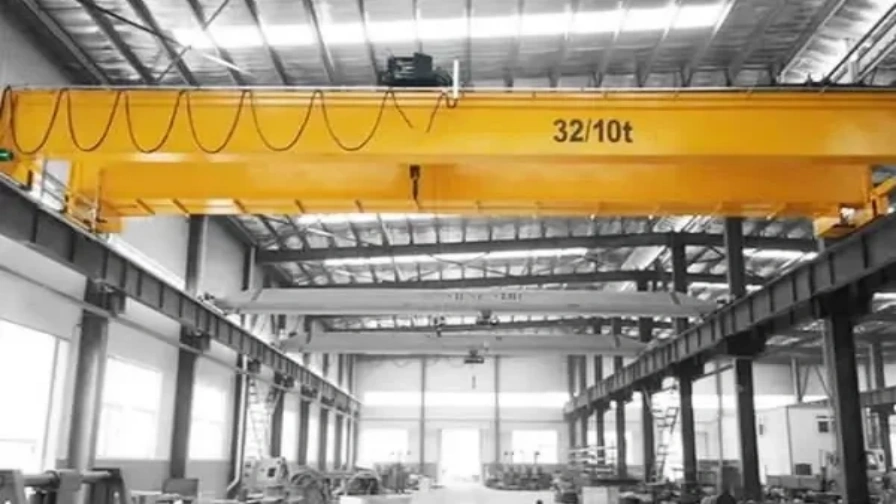

Newcore specializes in providing comprehensive solutions for 20-ton overhead cranes, including European standard, suspended, and low-headroom configurations. We also offer custom designs tailored to your specific application. With over 20 years of industry experience and extensive technical expertise, our products have been exported to over 160 countries and regions worldwide, establishing a strong reputation in the global lifting equipment market.

We are committed to providing efficient, low-maintenance, and reliable lifting systems to customers across various industries, helping them optimize their handling processes and improve operational efficiency. If you require a custom 20-ton overhead crane, please feel free to contact us for a customized solution and quote.
