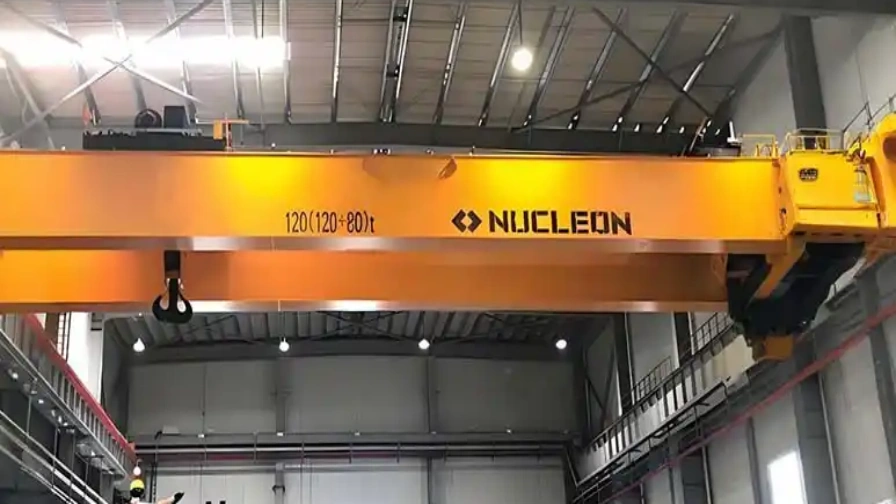

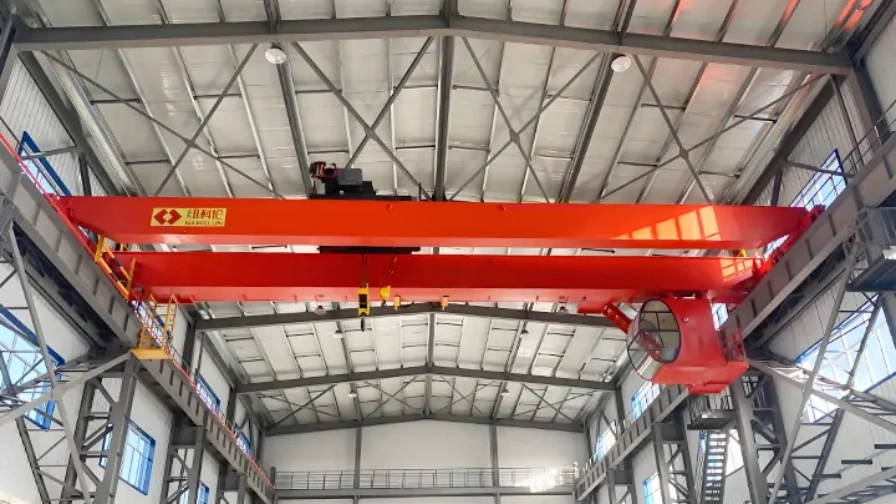

European double-girder bridge crane is a material handling equipment that adopts advanced European design concepts and manufacturing standards. It is mainly applied in warehouses, manufacturing plants, workshops, precision assembly lines and other production environments.

Design & Structure Introduction

This European-style bridge crane complies with European standards and has the characteristics of compact structure, smooth operation, variable frequency control, and small footprint. It consists of two main beams, end beams, a lifting mechanism, an operating mechanism, and other key components. The hook moves between the main beams to lift or move heavy objects.

Unique Advantages Compared With Traditional Cranes

Different from traditional overhead cranes, it features smaller hook-to-wall distance and lower headroom requirement. The European bridge crane can operate closer to walls with higher effective lifting height, greatly expanding the factory's available working space. Benefiting from lightweight body and low wheel pressure, new plants can adopt smaller building specifications while retaining complete production functions, which greatly reduces initial construction costs as well as long-term heating, air conditioning and daily maintenance expenses.

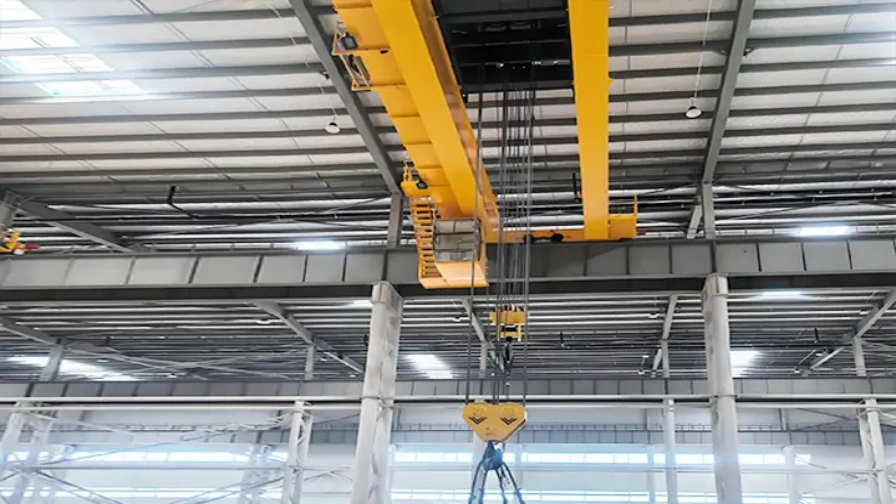

The European double-beam bridge crane has a wide range of applications across multiple heavy-duty industrial sectors.

Main Application Industries & Scenarios

Manufacturing and assembly workshop: in automotive, mechanical, electronic and other manufacturing lines for lifting large parts, molds or finished products.

Iron and steel metallurgy industry: for handling billet, steel coil and high temperature castings in steel mill, rolling mill and casting workshop, etc.

Logistics and Storage Center: for lifting containers, heavy cargo pallets or automated stereoscopic warehouses in large warehouses.

Energy and power industry: in thermal power plants, hydropower stations, to install/maintain generator rotors, transformers, and turbines.

Paper and chemical industries: handling and replacing heavy equipment such as large drums, storage tanks, and raw materials, suitable for potentially corrosive environments.

Automobile manufacturing plants: Precisely lift large components such as car bodies, molds, and engine assemblies on the production line to ensure smooth automated or semi-automated assembly processes.

Compact design: The entire machine is compactly designed, with a three-in-one motor used in the lifting mechanism, which takes up little space, effectively improving the working range and eliminating blind spots in transportation.

Lightweight design: Use high-strength steel to reduce weight, save construction costs, and energy consumption.

Stable operation: Equipped with a frequency conversion control system to achieve millimeter-level precise positioning and zero-impact start and stop, meeting the needs of precision operations.

High reliability: modular design makes subsequent maintenance and overhaul simple and effective in reducing downtime.

Safety protection: The whole machine is equipped with protection devices such as limiters, overload protection, emergency stop buttons, etc., to eliminate the risk of overload and collision.

Economical and practical: Lightweight and frequency conversion technology reduce comprehensive energy consumption by more than 40%, significantly reducing long-term operating costs.

Customize European Double Girder Bridge Crane

Nucleon Crane, as a professional manufacturer of European bridge cranes, has 20 years of R&D and manufacturing experience. We provide highly customized solutions including: lifting capacity, lifting height, lifting/running speed, control mode and other parameters. We also provide the following full range of supporting services.

Full Supporting Services

One-stop turnkey project: We provide complete lifting solutions, including the entire crane system, power system, rail system, to steel structures such as support beams and columns.

Professional Installation and Commissioning: We will send a team of experienced engineers to guide the installation on site, carry out load testing and commissioning, and provide comprehensive training to your operators.

Reliable Quality Assurance: We provide 12-month warranty for all our products, and free replacement service for non-man-made damage parts within one year.

Round-the-clock technical support: We provide 7*24 hours round-the-clock technical support. No matter when and where, you can get help by phone, e-mail and other ways. If necessary, our engineers will go to the site at the first time to solve your crane failure problems.

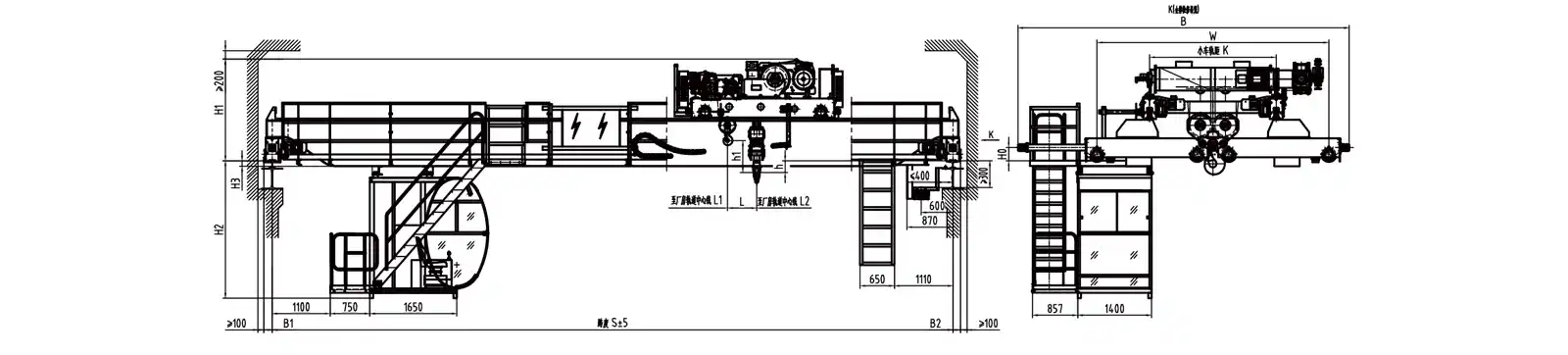

Main Technical Parameters
