Full one-stop warehouse material handling solution — covering customized design, precision manufacturing, on-site installation and official commissioning — successfully delivered for a logistics warehouse project in Buenos Aires, Argentina.
| Capacity | Type | Location | Application | Certification |
| 5Ton | Single Girder | Buenos Aires, AR | Warehouse | CE/ISO |
1. Project Overview

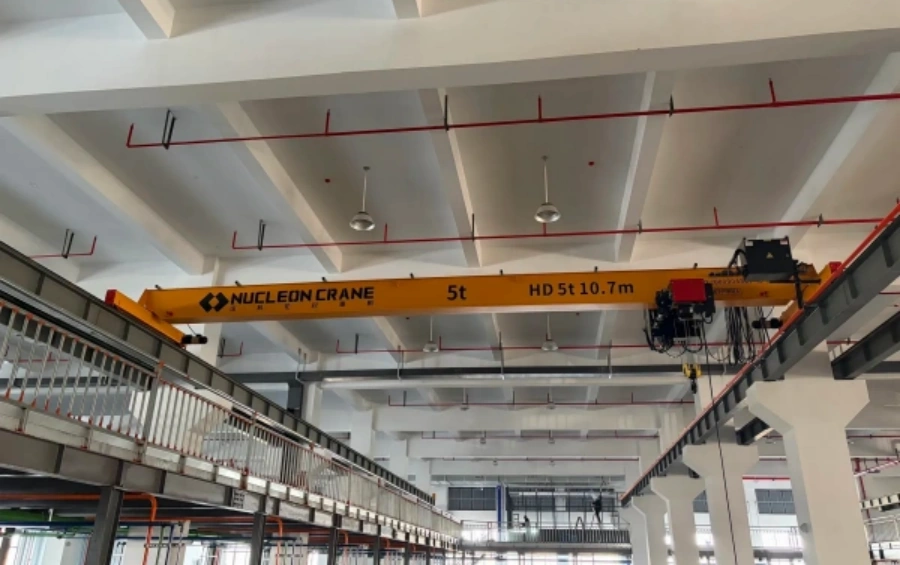

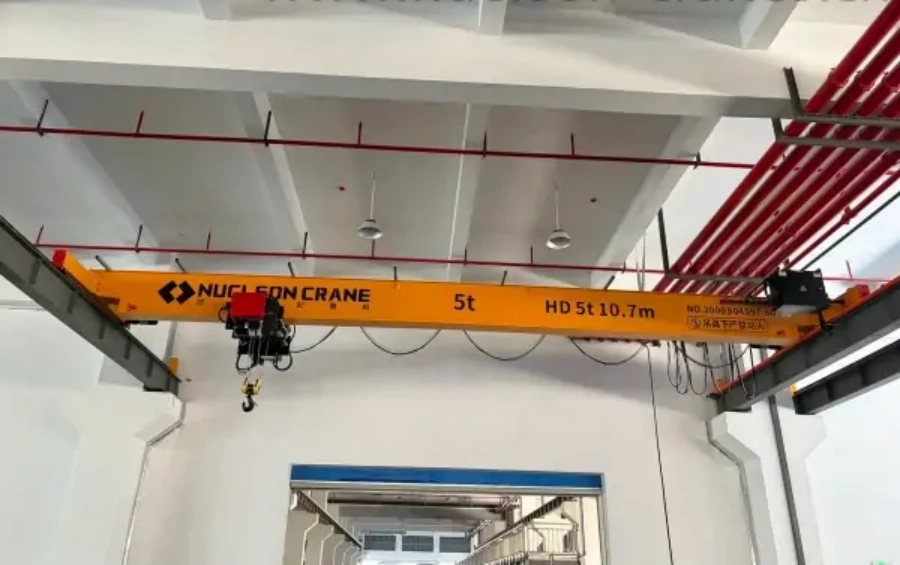

In early 2026, we completed full delivery, assembly and operational commissioning of a 5 ton single girder overhead crane for a large logistics warehouse located in the suburban area of Buenos Aires. This successful deployment further expands our overseas engineering footprint in South America, demonstrating our mature capability in supplying stable, cost-effective overhead crane systems for local industrial and logistics clients.
The end customer is a local medium-sized warehousing and distribution enterprise. Facing growing daily cargo turnover, the client needed a reliable indoor lifting system to handle general goods, steel parts and packaged materials across their wide-span warehouse. To match their actual building structure and daily working frequency, our technical team provided fully tailored design, structural optimization and complete turnkey services from initial communication to final project handover.
2. On-Site Customer Requirements
Before finalizing the crane design scheme, our engineering team conducted a comprehensive site analysis and demand sorting. The core demands of this Argentina warehouse overhead crane project are summarized as follows:
- Stable 5-ton rated lifting capacity to cover daily and future expanded material handling workloads
- Low-headroom structural design to maximize vertical storage space under the original factory steel frame
- Full-span coverage to eliminate lifting blind areas and realize full-warehouse operational coverage
- Variable frequency speed control to ensure stable travel and precise cargo positioning
- Full compliance with CE and ISO international safety standards to meet local import and industrial inspection regulations
- Complete one-stop service including factory production, on-site installation, commissioning and operational training
3. Customized Crane Configuration
Combining on-site building data, warehouse span and actual handling scenarios, we customized a professional 5-ton single girder overhead crane solution for the client.
Different from double girder cranes, the single girder type features lighter self-weight and lower structural load on the building roof. For medium-load, frequent indoor warehouse operation, this configuration effectively controls overall project costs while fully meeting safety standards, working duty and daily handling efficiency requirements, achieving high cost-performance for logistics warehouse applications.
| Parameter | Specification |
| Lifting Capacity | 5Ton |
| Crane Type | Single Girder Overhead Crane (Electric Hoist) |
| Span | 10.7 m |
| Lifting Height | 6 m |
| Working Duty | A3 (M4) - Standard warehouse duty |
| Power Supply | 380V/50Hz/3-Phase |
| Bridge TravelSpeed | 20/5 m/min (dual speed) |
| Hoist TravelSpeed | 20/5 m/min (dual speed) |
| Lifting Speed | 8/0.8 m/min (dual speed) |
4. Standardized Installation & Commissioning Process
During the whole project implementation in Buenos Aires, our professional after-sales technicians cooperated closely with the local construction team to carry out standardized installation and debugging work. The whole construction process was strictly divided into standardized steps to ensure stable equipment performance and safe operation:
- Pre-shipment factory inspection: All crane main beams, end carriages, electric hoists and electrical components passed strict factory testing and load verification to eliminate defective parts before shipment.
- Runway track calibration: Precision positioning and horizontal correction for the full 10.7m span track, controlling overall installation tolerance within ±1mm to guarantee smooth travelling.
- Electrical system assembly: Complete wiring, cable trolley system and operating handle installation, fully complying with local electrical safety norms.
- Multi-level load testing: Conducted no-load, full-load (100%) and overload (125%) static and dynamic tests to verify lifting stability, braking performance and overall safety.
- On-site operator training: Delivered systematic guidance on daily safe operation, routine inspection standards and emergency response measures for warehouse staff.
5. Final Project Effect
The entire on-site installation and commissioning work was completed efficiently within 4 days after the equipment arrived on site. All tested technical indicators fully met design specifications and international safety standards.
After official operation, the warehouse’s cargo handling efficiency improved significantly. The overhead crane runs stably without jitter, abnormal noise or failure, helping the client realize standardized, efficient and safe indoor material turnover.
6. Core Project Advantages
The customized 5-ton single girder overhead crane brings multiple practical improvements for the client’s Buenos Aires logistics warehouse:
- Greatly reduces manual carrying work, lowers labor costs and improves overall workshop operation safety
- Full-span working coverage completely solves the problem of lifting dead zones in the warehouse
- Optimized low-headroom structure maximizes vertical storage space without modifying the original factory building
- Variable frequency hoist ensures soft start and stop, avoiding cargo shaking and collision for precise material placement
- A3 heavy working duty adapts to long-term frequent warehouse handling and extends equipment service life
- Optional wireless remote control allows operators to work in safe positions, further optimizing operational safety
- CE full certification supports smooth customs clearance and long-term compliant operation in Argentina
7. Why Cooperate With Us for Overhead Crane Projects
As a professional overhead crane manufacturer with complete CE certification and full export qualifications, we have provided customized industrial lifting solutions for more than 60 countries and regions worldwide, covering South America, Southeast Asia, the Middle East and Africa.
Each overseas crane project adopts a personalized design mode. Our engineers conduct comprehensive evaluation according to your factory span, lifting height, load tonnage, working frequency and power conditions, recommending the most cost-effective overhead crane solution.
We provide complete export documents including CE certificates, load test reports and factory qualification files to support one-stop customs clearance. Whether you need a 5-ton standard overhead crane for warehouse upgrading or a non-standard customized bridge crane for special factory conditions, we can provide full-process services from technical consultation, scheme design, production and manufacturing to on-site installation and long-term after-sales support.
