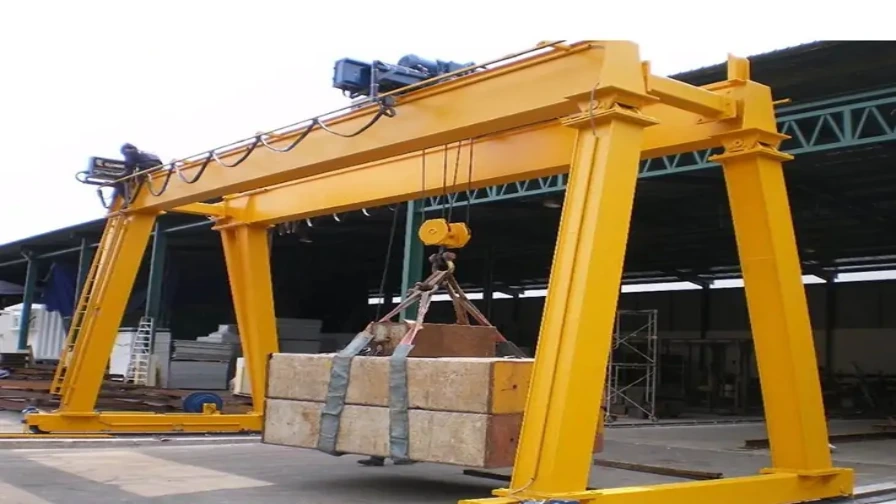

The 5-ton gantry crane is a compact and versatile lifting solution designed for efficient material handling in warehouses, factories, and workshops with limited space. With adjustable height and span, it offers flexible operation and smooth movement while ensuring safety and stability during heavy load lifting. Its sturdy structure and easy mobility make it ideal for handling up to 5 tons of materials, optimizing workflow and improving productivity. Our 5 ton gantry cranes can be fully customized to meet your specific working conditions and project requirements.

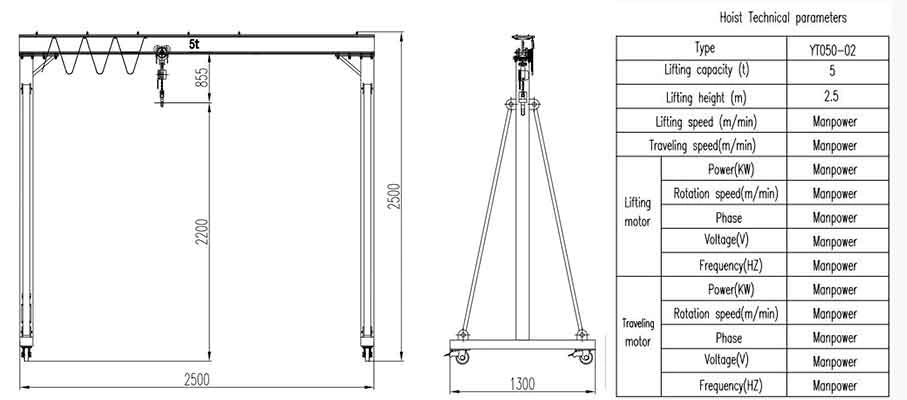

5 Ton Gantry Crane Design
Our 5-ton gantry cranes can be customized to meet project requirements, including adjustable span, lifting height, power configuration, and mobility solutions. Whether you need fixed, portable, wall-mounted, or height-adjustable models, our engineering team will tailor crane configurations to perfectly match your workspace and operational needs.
Seeking a customized 5-ton gantry crane solution? Contact us today to discuss project details. Our expert team will provide the optimal design and quotation tailored to your specific application.

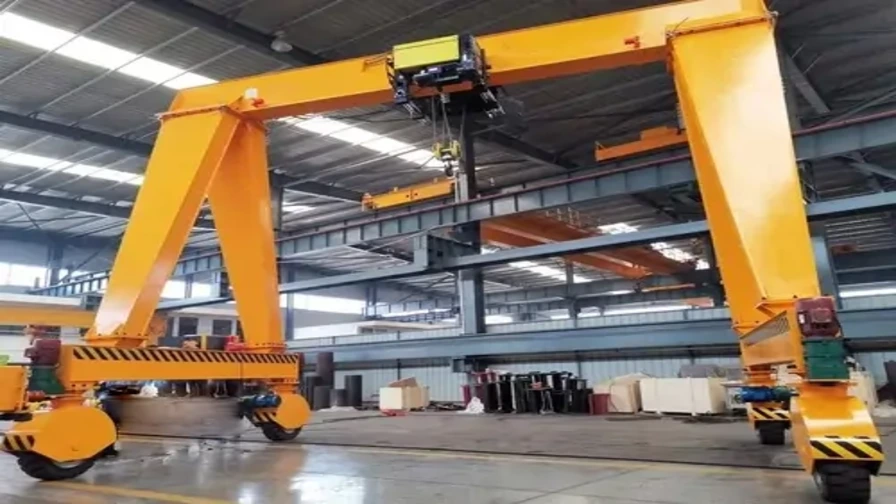

5 Ton Gantry Cranes in Workshops
In industrial workshops, the 5-ton gantry crane enables the smooth handling, movement, and precise positioning of heavy machinery, components, and raw materials. Performing these tasks solely through manual labor or multiple processing steps would consume significant effort. By utilizing the 5-ton gantry crane, workshops can optimize production processes, reduce downtime, and enhance material flow efficiency between workstations.
The 5-ton gantry crane offers flexibility to adapt to varying production layouts and spatial constraints. Unlike overhead cranes, it allows for easy relocation and height span adjustments, providing workshops with a flexible lifting solution. Its advantages include a compact structure, low installation costs, easy maintenance, and high lifting efficiency, making it an ideal choice for workshops seeking to boost productivity and safety while maintaining flexibility within limited industrial spaces.
| Parameter | Specification |
|---|---|
| Rated Lifting Capacity | 5 Tons |
| Span (Distance Between Legs) | 3 m – 12 m (customizable) |
| Lifting Height | 3 m – 9 m (customizable) |
| Lifting Speed | 6–8 m/min |
| Traveling Speed | 10–20 m/min |
| Crane Type | Single Girder / Double Girder |
| Control Method | Pendant Control / Remote Control |
| Power Supply | 380V 50Hz 3-Phase (customizable for local standards) |
| Working Class | A3–A5 (based on usage frequency) |
| Crane Traveling Mechanism | Manual or Electric Driven |
| Material | High-strength steel (Q235B / Q345B) |
| Wheel Type | Polyurethane or Steel Wheel |
| Application Areas | Workshops, Warehouses, Maintenance Yards, Fabrication Plants |
| Design Feature | Adjustable height and span, easy assembly and mobility |
| Customization | Available for span, height, power, and control type |
